COOLING TROUGH

CT cooling trough ensures efficient and precise cable cooling with adjustable high-capacity design.

The CT cooling trough is a high-capacity thermal management solution constructed from double-walled chromium steel to ensure durability and effi cient temperature retention. Designed for continuous production, the system features a primary temperature-controlled zone followed by a motorized telescopic section that allows for precise adjustment via AC motor feedback. For intensive cooling requirements, the multi-pass confi guration utilizes large-diameter defl ection pulleys to maximize the cable’s immersion time within the circulating water.
  • Productivity
    Productivity
  • Sensibility
    Sensibility
  • Flexibility
    Flexibility

COOLING TROUGH

The integrated assembly includes both hot and cold-water tanks, circulation pumps, and a dual-stage drying system equipped with air blowers and wipes to remove moisture eff ectively. While the mechanical structure, piping, and manual valves are provided as standard, specifi c parameters such as exact cooling lengths and reservoir capacities are customizable to meet diverse cable diameter and line speed requirements based on the customer’s technical expectations.

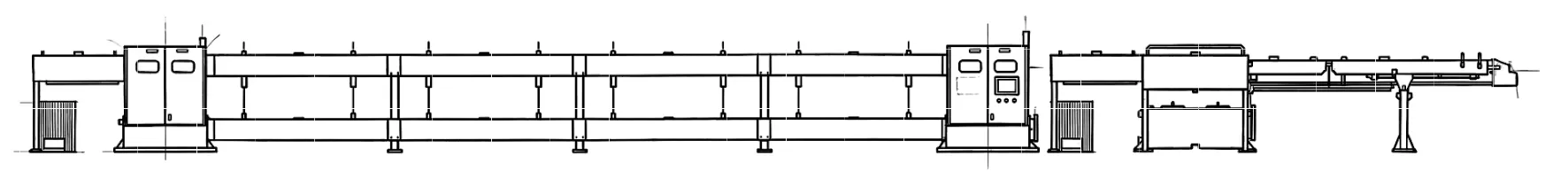

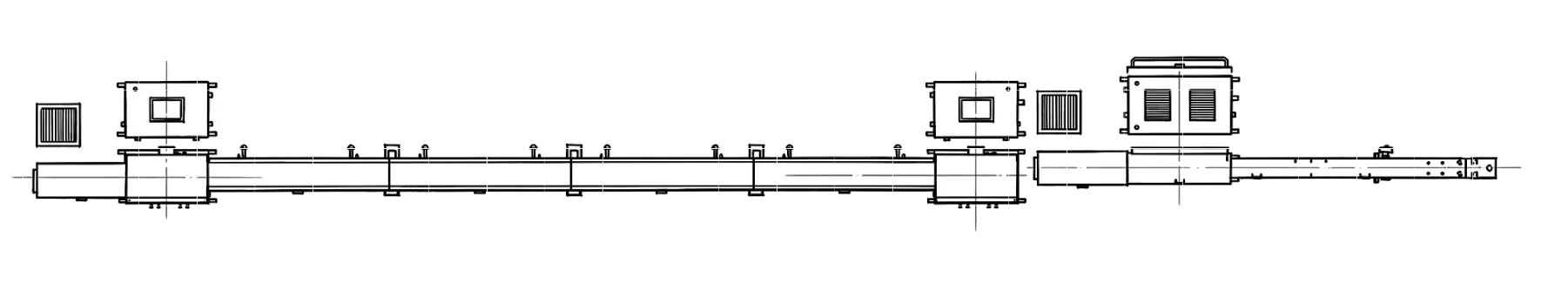

SIDE VIEW FRONT VIEW TOP VIEW

Photo Gallery

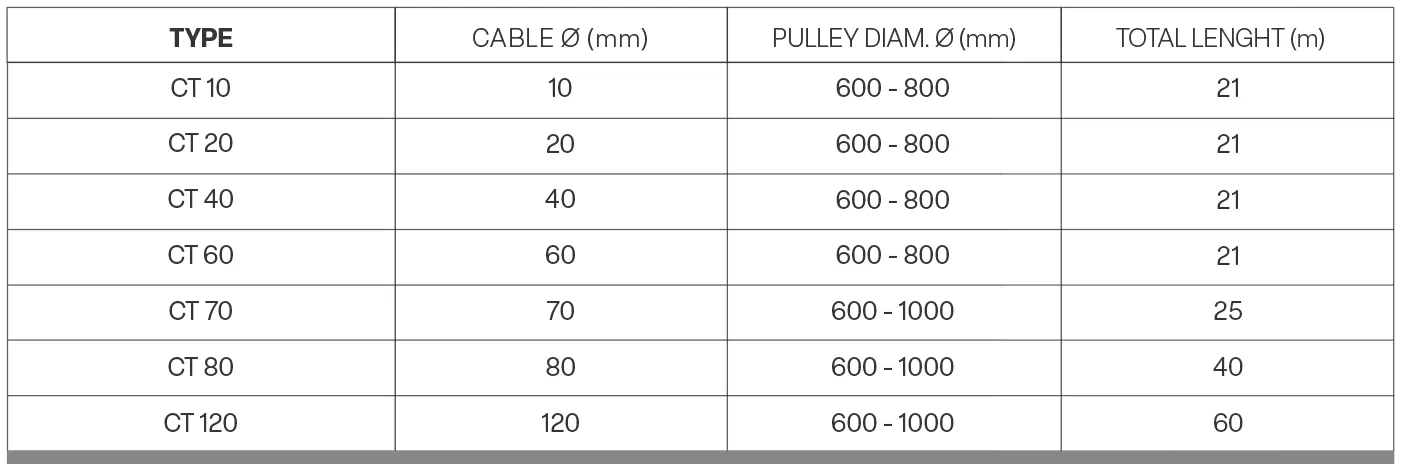

Technical Specifications
