DUAL TYPE

Our automated Dual Take-Up system features a modular design where winding speed is synchronized via a pneumatic dancer. This ensures consistent tension throughout the production cycle. The winding process is powered by high-effi ciency AC motors paired with dedicated AC drivers, providing precise torque control. For operational safety, integrated pneumatic disc brakes ensure the reel stops instantly following the change-over process.

Productivity
Sensibility
Flexibility

DUAL TYPE

The machine includes a sophisticated length-measuring system utilizing a non-contact pulse generator for high accuracy. Operators can easily manage production targets via the length presetting and digital display located on the main control interface. All electrical components are housed in a single, streamlined cabinet, with the entire sequence managed by a centralized PLC for reliable performance. The reel change is automatic and starts automatically after wire change-over but can also be started manually

DUAL TYPE

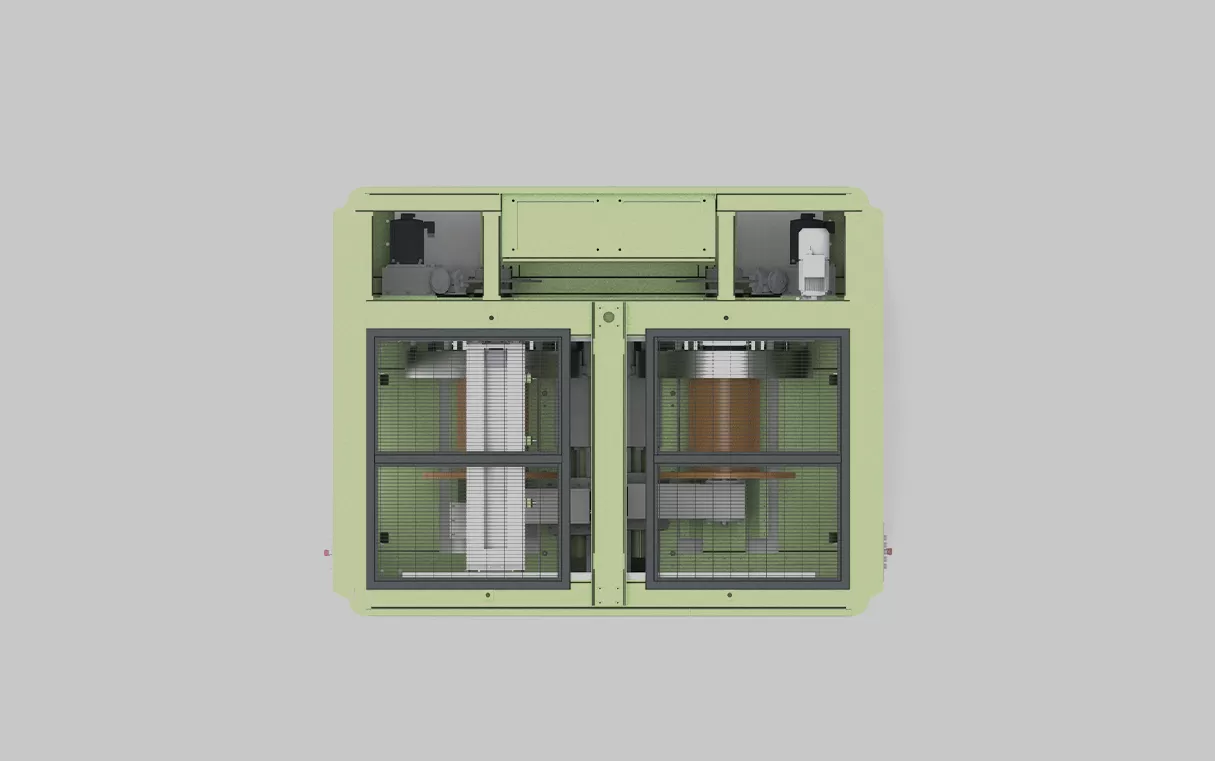

In the take-up both reeling locations have separate reel lifting devices. Drum loading/unloading will be manual.

This confi guration is optimized for continuous high-speed lines where precision winding and minimal downtime are critical. The combination of pneumatic tensioning and digital length tracking off ers a robust solution for diverse cable and wire manufacturing requirements.
